High Performance Industrial Coatings

Industrial Coating Services

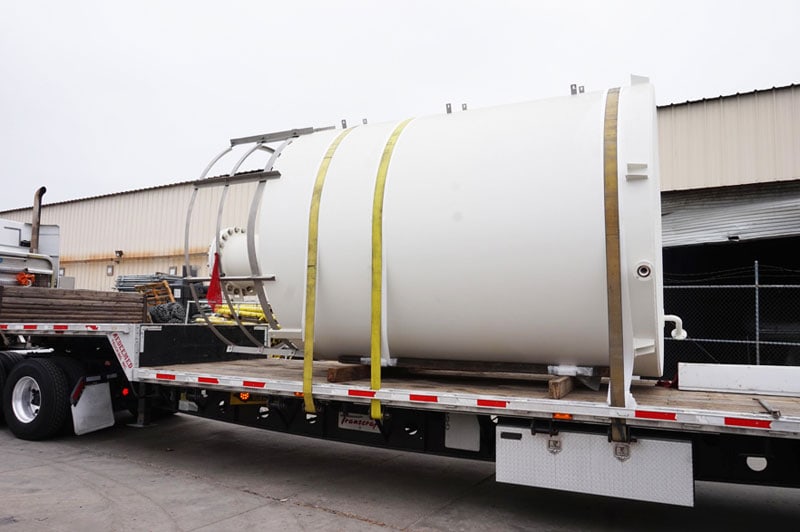

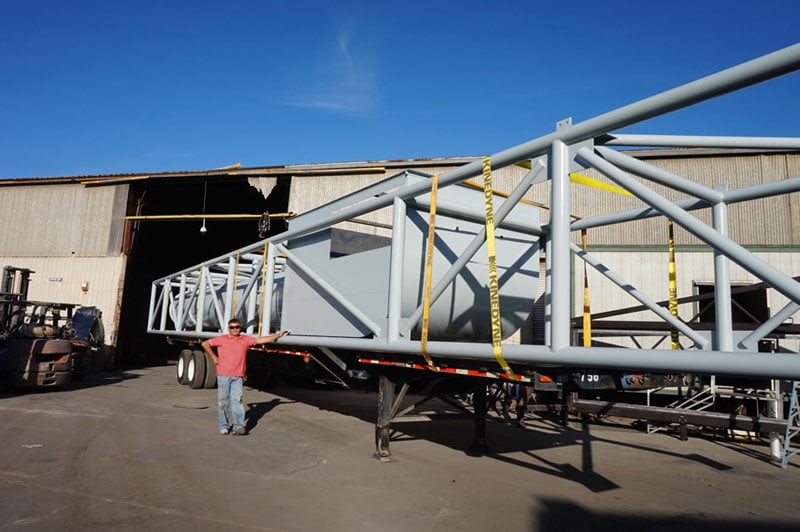

At Master Powder Coating Inc., we provide a variety of wet paint options for customers in the architectural, industrial, marine, defense and commercial industries. A variety of epoxy, enamel, and zinc based paints are available to meet corrosion resistance. We routinely paint large tank interiors and exteriors, steel structures, and architectural beams that are subject to harsh chemicals and marine environments. Our paint booth is set up to handle a range of sizes and production volumes including skid systems.

Cleaning and Blasting Services is performed as needed to ensure proper paint adhesion. Properly preparing the metal substrate is essential to achieving a lasting paint finish. Specific areas can also be masked off to precision details according to customer specifications. Our NACE certified inspectors perform various inspection points to assure the highest quality of workmanship. These inspections can range from Ambient Temperature Readings per Standard ASTM 4417, Surface Profile of Blasted Clean Steel, Cloride Testing, WFT Measurements, DFT Measurements, Adhesion Tape Test per Standard ASTM D3359 Method B, DIN Standard and ISO 2409, Pull Off Test per ASTM D4541 and ISO 4164, and Holiday Testing.


High Performance Industrial Coatings Capabilities

Coating

Epoxy
Enamel
Zinc
Fire-Proofing
Polyurethane
Marine Grade Coatings
Tanks Lining
Fluoropolymers
FBE Coatings
Non Skid Coatings

Substrate

Aluminum
Stainless Steel
Carbon Steel
Most Metals

Applications

Tanks
Structural Beams
Piping
Industrial Equipment
Large Structures
Electrical Housings
Skid Systems
Oil Field Equipment
Filtration Systems
Pumps
Valves

Coating Characteristics

Abrasion Resistant
Corrosion Resistant
Flame Retardant
Decorative

Pre-Coating Preparation

Masking
Acid Etch Primer
Surface Prepartion per:

  • SSPC-SP-1
  • SSPC-SP-2
  • SSPC-SP-3
  • SSPC-SP-6
  • SSPC-SP-7
  • SSPC-SP-10
  • SSPC-SP-5
Application Process

HVLP
Airless
Conventional

Testing & Inspection

Ambient Temperature Readings per Standard ASTM 4417
Surface Profile of Blasted Clean Steel
Cloride Testing
WFT Measurements
DFT Measurements
Adhesion Tape Test per Standard ASTM D3359 Method B
DIN Standard
ISO 2409
Pull Off Test per ASTM D4541
ISO 4164
Holiday Testing
Profile Inspection
Adhesion Testing
Pencil Hardness Testing

Additional Services

Quality Inspection
Raw Material or Finished Good Stocking
Packaging
Local Pick-Up & Delivery
Field Service as Needed

Production Volume

Low Volume
High Volume

Typical Lead Time

3-5 Days Typical
Dependent on Specific Project & Coating Type

Additional Information

Industry Focus

Architectural
Marine
Offshore Platform
Military
Commercial
Refineries
Aerospace

Certifications

ISO 9001:2008 Certified
NACE
